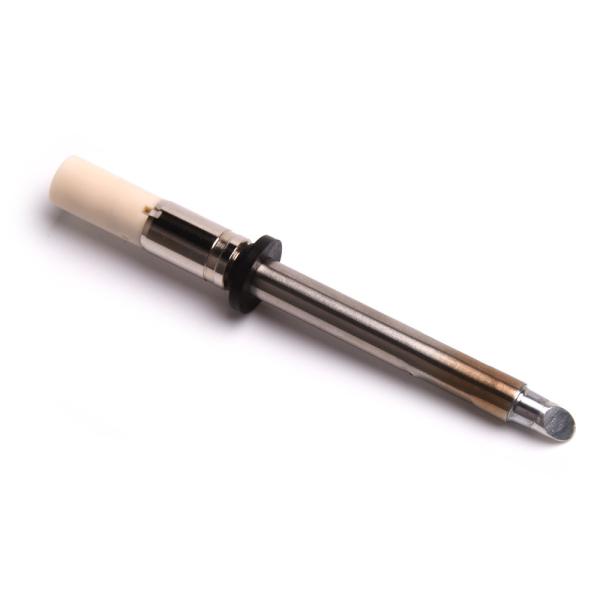

T20-C5 soldering iron tips replacement part

Model options:
T20-BC2 soldering iron tips, T20-BCF2 soldering iron tips; T20-BC3 soldering iron tips; T20-BC3F soldering iron tips;
T20-BC4 soldering iron tips; T20-BCF4 soldering iron tips; T20-C5 soldering iron tips; T20-C6 soldering iron tips;
T20-D16 soldering iron tips; T20-D24 soldering iron tips; T20-D32 soldering iron tips; T20-D6 soldering iron tips;
T20-J02 soldering iron tips; T20-K soldering iron tips; T20-KU soldering iron tips; T20-BL soldering iron tips;
T20-BL2 soldering iron tips; T20-BL3 soldering iron tips; T20-BCM2 soldering iron tips;

Shape BCM/CM
This type differs from Shape BC by the addition of a hollow to its cut face, providing high solder retention capability.
It is used for drag soldering and correction of bridging.

Shape BC/C
This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece.
It is used for drag soldering and pre-tinning of lead wires.

Shape B
All-round type which can be used from any direction and is easy to hold at any position.
Possible to solder any surface from small to large

Shape D
This type has a shape like a flat-blade screwdriver and is capable of soldering by applying the tip in 2 ways: line and face.
The width (size of tip) suitable for the workpiece can be selected, and it can be used for any soldering work

Shape J
This type differs from Shape B and I by bending the tip end and is capable of soldering by applying the tip in 2 ways: face and point.
It is used for drag soldering and correction of bridging

Shape K
This type has a shape like a knife and is capable of soldering by applying the tip in 3 ways: line, face and point.
It is used for soldering at narrow pitches, correction of bridging and drag soldering.
